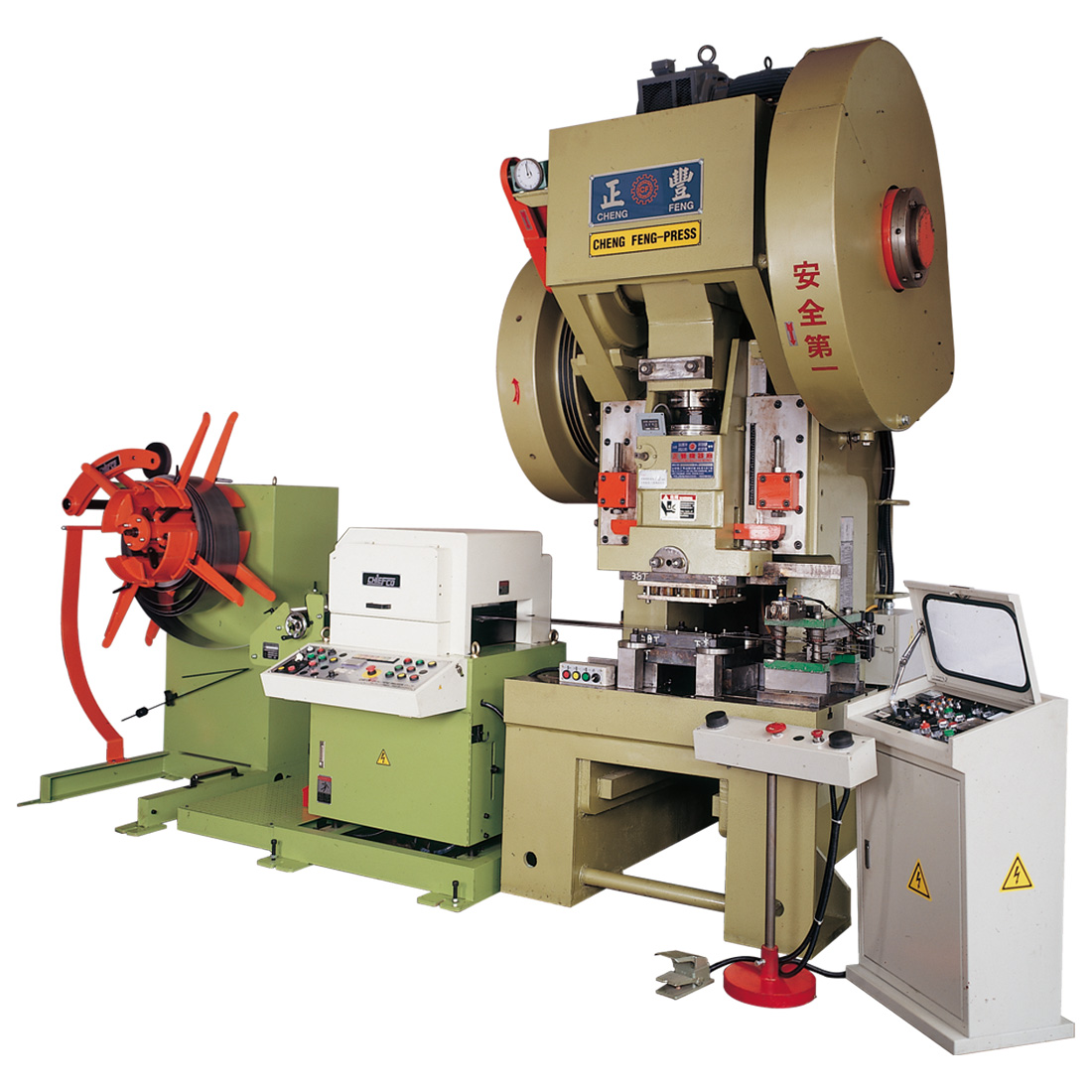

C-Type Automatic Pneumatic Press

Inquire

Product ID: C-AP 250T

C-Type Automatic Pneumatic Press

FEATURES:

1.PRECISION:The machine frame is welded from steel plates. strees relieved for maximum impact resistance and durability.

2.AUURATE MOTIONS:The machine employees double air coupled clutch. permiting for jog.single cycle. and continutous operations.Accurate motions. low noise. and meet environmental protection standards.

3.MAXIMUM SAFETY AND DEPENDABILITY:The control circuit provides maximum safety guard for the machine and long service life.

STABDARD EQUIPMENTS:

  1. Automatic intermittent lubrication device.
  2. Material preloading device.
  3. Cam running controller.
  4. Magnetic counter
  5. Air blow device
  6. Foot switch
  7. Second drop protection device.

OPTIONAL EQUIPMENTS:

  1. Lamp socket
  2. Photoelectrical cell safety device
  3. Variable speed motor(Frequency invertor)
  4. Manual sliding block adjustment
  5. Anti-vibration device(Choice of rubber pad. Or machine fotting)

Specification Table

MODEL



C-AP 60

C-AP 100

C-AP 150

C-AP 200

C-AP 300

Capacity

Tons

60

100

150

200

300

Strokes Per minute

S.P.M

85

75

65

60

55

Stroke length

mm

100

125

150

150

150

Die height

mm

260

300

380

400

450

Slide adjustment

mm

60

70

70

80

80

Bolster area

mm

460×710

550×1000

600×1200

700×1300

800×1600

Dia. Of slide

mm

50.8

50.8

50.8

50.8

50.8
