C-Type Traditional Press

Inquire

Product ID: CF-100

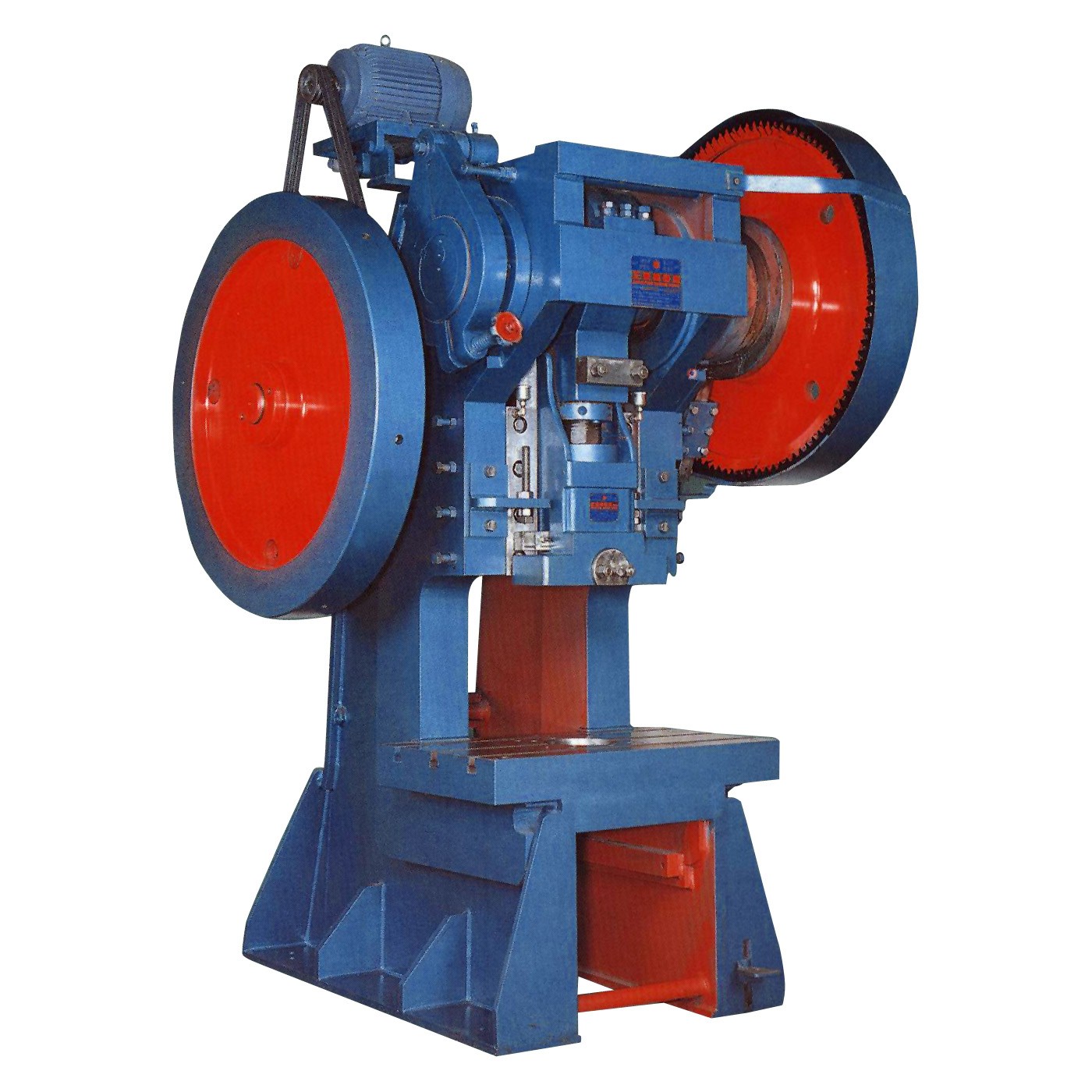

C-Type Traditional Press

FEATURES:

The machine is suited for automatic continuous punch press or edge cutting applications.





STANDARD EQUIPMENTS:

  1. Manual lubricator
  2. Sliding block adjustment wrench
  3. Material release device

OPTIONAL EQUIPMENTS:

  1. Auxiliary table
  2. Foot operated air switch
  3. Automatic intermittent lubrication device
  4. Mold pad
  5. Photoelectrical cell safety device
  6. Anti-vibration device(Choice of rubber pad of machine footing).

Specification Table

型式

單位

C-25

C-45

C-60

C-80

C-100

C-120

C-150

C-200

C-250

C-300

C-400

能力

Capacity

噸

25

45

60

80

100

120

150

200

250

300

400

行程

Length of stroke

mm

89

101

115

127

127

127

152

178

203

203

203

行程數

Stroke

Spm

80

70

65

65

60

55

55

50

50

45

45

滑塊調整量

Adjustment of sslled

mm

50

50

60

60

80

80

100

100

100

120

120

滑塊孔徑

Dia. Of slide

mm

Φ38

Φ38

Φ50.8

Φ50.8

Φ50.8

Φ50.8

Φ50.8

Φ50.8

Φ50.8

Φ50. 8

Φ57

台盤面積

Area of bolster

mm

405×560

450×635

510×765

560×815

610×865

610×865

710×1000

710×1055

810×1175

810×1260

810×1260

主電動機

Main motor

HP×P

2/4

3/4

5/4

72/1/4

72/1/4

10/4

10/4

15/4

20/4

25/4

30/4
