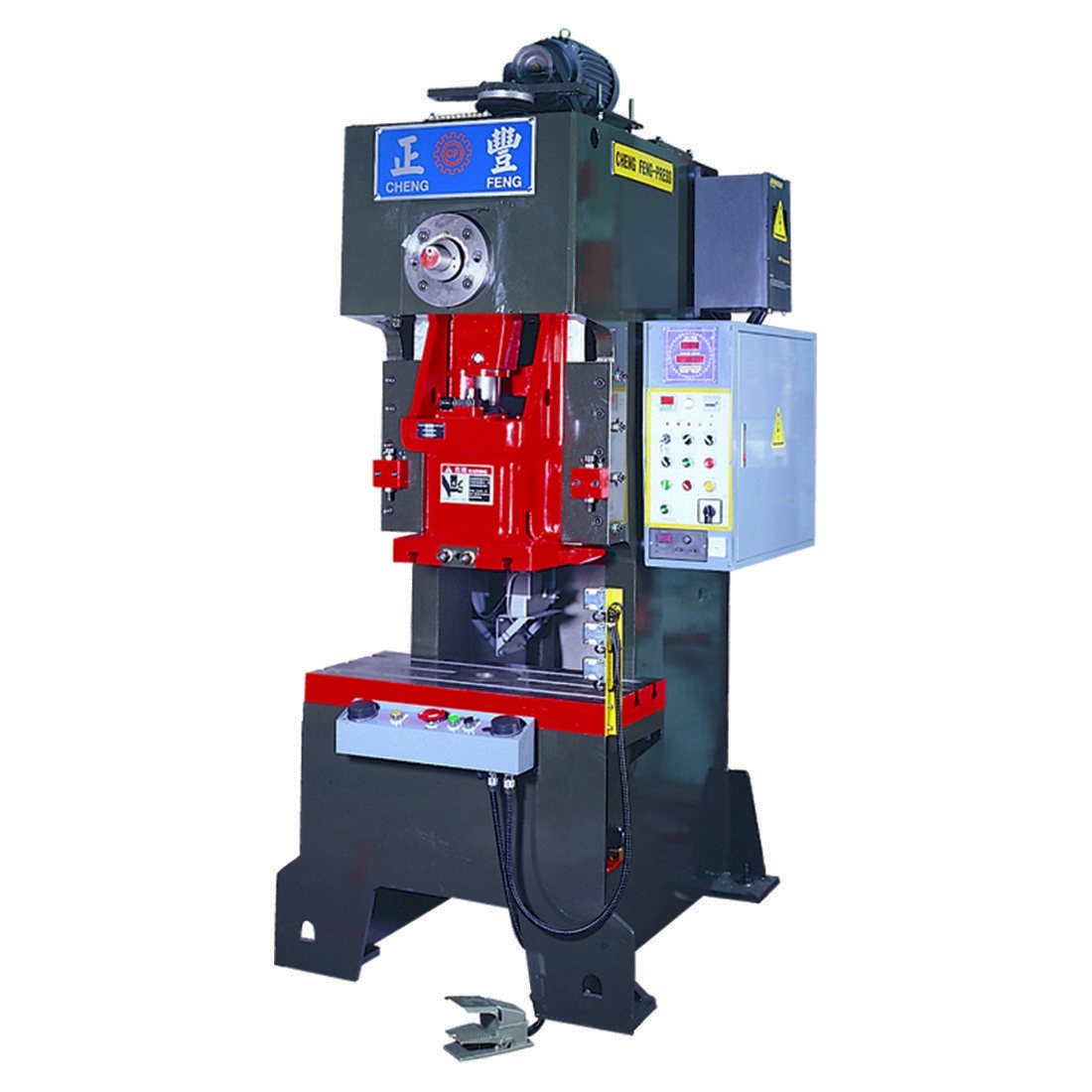

精密直軸沖床
產品型號: 80T
規格表
|
規格 |
CF-25 |
CF-35 |
||||
|
S |
H |
S |
H |
|||
|
加壓能力TONS |
25 |
35 |
||||
|
行程(M.M) |
80 |
40 |
80 |
50 |
||
|
每分鐘行程數S.P.M |
90 |
120 |
80 |
100 |
||
|
VS馬達行程數(M.M) |
70-120 |
120-200 |
70-120 |
120-200 |
||
|
能力發生點(M.M) |
3.2 |
3.2 |
||||
|
閉口工作高度(M.M) |
200 |
190 |
220 |
210 |
||
|
滑塊調整量(M.M) |
50 |
50 |
||||
|
滑塊面積(M.M) |
350×250 |
400×320 |
||||
|
滑塊孔徑(M.M) |
Φ38.1 |
Φ38.1 |
||||
|
台盤面積(M.M) |
700×320 |
730×400 |
||||
|
台盤厚度(M.M) |
70 |
80 |
||||
|
作業面高度(M.M) |
800 |
800 |
||||
|
台身內側寬度(M.M) |
408 |
472 |
||||
|
VS主馬達(特別附件) |
5HP |
5HP |
||||
|
主馬達(標準型) |
3HP×4P |
3HP×4P |
||||
|
滑塊調整馬達 |
手動 |
手動 |
||||
|
腳架尺寸(M.M) |
720×1080 |
830×1210 |
||||
|
空氣壓力(kg/cm2) |
5.5 |
5.5 |
||||
|
總高度(M.M) |
2150 |
2820 |
||||
|
精度 |
CNS 1ST |
CNS 1ST |
||||
|
模墊(特別附件) |
|
|
||||
|
能力TONS |
－ |
2.2 |
||||
|
行程(M.M) |
－ |
50 |
||||
|
面積(M.M) |
－ |
300×210 |
||||
|
空氣壓力(kg/cm2) |
－ |
5 |
||||
|
CF-45 |
CF-60 |
CF-85 |
CF-120 |
||||||
|
S |
H |
S |
H |
S |
H |
S |
H |
||
|
45 |
60 |
80 |
120 |
||||||
|
90 |
60 |
120 |
80 |
150 |
100 |
180 |
110 |
||
|
70 |
100 |
60 |
90 |
60 |
80 |
50 |
70 |
||
|
50-100 |
90-150 |
45-80 |
70-120 |
45-75 |
60-100 |
35-65 |
60-90 |
||
|
3.2 |
3.2 |
5 |
5 |
||||||
|
250 |
240 |
260 |
250 |
330 |
300 |
350 |
320 |
||
|
60 |
70 |
80 |
90 |
||||||
|
440×350 |
500×380 |
520×450 |
650×480 |
||||||
|
Φ38.1 |
Φ50.8 |
Φ50.8 |
Φ50.8 |
||||||
|
900×450 |
950×500 |
950×600 |
1200×600 |
||||||
|
110 |
130 |
140 |
150 |
||||||
|
800 |
800 |
850 |
850 |
||||||
|
526 |
584 |
584 |
720 |
||||||
|
71/2HP |
10HP |
15HP |
15HP |
||||||
|
3HP×4P |
71/2HP×4P |
10HP×4P |
15HP3P |
||||||
|
手動 |
手動 |
0.4KW×4P |
0.4KW×4P |
||||||
|
1040×1350 |
1100×1455 |
1100×1590 |
1380×1840 |
||||||
|
5.5 |
5.5 |
5.5 |
5.5 |
||||||
|
2440 |
2865 |
2950 |
3160 |
||||||
|
CNS 1ST |
CNS 1ST |
CNS 1ST |
CNS 1ST |
||||||
|
|
|
|
|
||||||
|
3.5 |
4.8 |
6 |
6 |
||||||
|
60 |
85 |
85 |
90 |
||||||
|
340×234 |
350×260 |
410×320 |
500×380 |
||||||
|
5 |
5 |
5 |
5 |
||||||
|
CF-160 |
CF-200 |
CF-250 |
||||
|
S |
H |
S |
H |
S |
H |
|
|
160 |
200 |
250 |
||||
|
200 |
130 |
200 |
150 |
250 |
200 |
|
|
40 |
65 |
35 |
50 |
35 |
45 |
|
|
35-60 |
45-70 |
35-45 |
35-65 |
35-40 |
35-50 |
|
|
6 |
8 |
8 |
||||
|
400 |
360 |
450 |
400 |
450 |
500 |
|
|
100 |
110 |
125 |
||||
|
700×550 |
840×650 |
900×700 |
||||
|
Φ65 |
Φ65 |
Φ65 |
||||
|
1300×750 |
1450×850 |
1500×900 |
||||
|
160 |
180 |
200 |
||||
|
950 |
1000 |
100 |
||||
|
800 |
900 |
900 |
||||
|
20HP |
25HP |
30HP |
||||
|
15HP×6P |
20HP×6P |
25HP×6P |
||||
|
0.75KW×4P |
0.75KW×4P |
0.75KW×4P |
||||
|
1500×2100 |
1750×2415 |
2000×2700 |
||||
|
5.5 |
5.5 |
5.5 |
||||
|
3630 |
3965 |
4210 |
||||
|
CNS 1ST |
CNS 1ST |
CNS 1ST |
||||
|
|
|
|
||||
|
10 |
14 |
16 |
||||
|
100 |
110 |
120 |
||||
|
600×400 |
650×450 |
750×700 |
||||
|
5 |
5 |
5 |
||||
